Zero-BG
Zero-BG

Key Features

- 3 section A Frame Towers for ease of transportation and assembly. Single section weight -70kg.

- Adjustable tower height - 9,3 metres standard/ 6,4 meters without mid-section. Galvanized

- High strength Stainless Steel components for superior corrosion resistance.

- Special galvanized steel cable for maximum line tension and big air tricks.

- High quality Motor and Automation electronics from Siemens.

- High quality SKF bearings.

- Simple maintenance

- Full compliance with European Standards and Directives.

Zero-BG

Technical Specification

- Tower height: 6,4 / 9,3 metres adjustable (custom height on request)

- Distance between towers: 100-240 metres

- Operating speed: 0-40 km/h

- Power supply: 3 phase / 27A/400V/50Hz (2 phase as an option)

- Manual or Automatic operation modes. Auto mode can be limited by Laps, Time or both

- Adjustable distance to End points, Turn points and Home position.

- Drive cable: Ø 8mm, galvanized

- Tension cables: Ø10mm, galvanized, 2 per pylon

Company wakeboard cable systems

We are a young team with background in engineering/automation and passionate about extreme sports (wakeboarding/snowboarding).  So the creation of Zero Gravity Ltd. and Zero Gravity Cable System was a normal consequence.  All started with the build of a wakeboard cable systems for our own personal use and grown to a high quality product we can offer for sale. We will be proud if we can help develop and bring wakeboarding to the less developed markets.

Zero Gravity aim is to offer high quality products on reasonable price with outstanding customer support.  No matter how big or small, with or without experience in the industry, you can count on us for any of your needs. Located in Varna, Bulgaria taking advantage of our location and working with subcontractors give us access and ability to offer latest technology on reasonable price.

QUALITY OBSESSED, constantly looking for new ideas and ways to improve we can be the solution to your crazy ideas.

  • Wakeboard cable systems
  • Wakeboard cable systems
  • Wakeboard cable systems
  • Wakeboard cable systems
1234

Cable System

Zero Gravity Cable System is two tower portable pulling device for wakeboarding and snowboarding. Can be used as stand-alone or in addition to full size cable parks and it’s a perfect solution for both beginners and experienced riders. With time for assembly/disassembly of just one/two days, it is the ideal tool for sporting events.

When we developed the wakeboard cable system we aimed for High performance /High quality, Simple operation and Low Cost, and we can proudly say we did just that. CAD/CAM designed and manufactured with the latest CNC machining technology.

We provide a better solution for the growing number of two tower wakeboard parks worldwide.

Key features:

  • HEAVY-DUTY  up to 11 kW as standard !
  • Adjustable tower height – 9,3 metres as standard/ 6,4 meters without the use of mid-section.
  • Hot dip Galvanized
  • High strength Stainless Steel components for superior corrosion resistance and more line tesnion.
  • Bigger nylon rollers for less frequent changes.
  • High quality SKF bearings.
  • Special galvanized steel cable for maximum line tension and big air tricks
  • High quality Motor and Automation from Siemens.
  • Simple maintenance
  • Full compliance with European Standards and Directives.

Technical Specification:

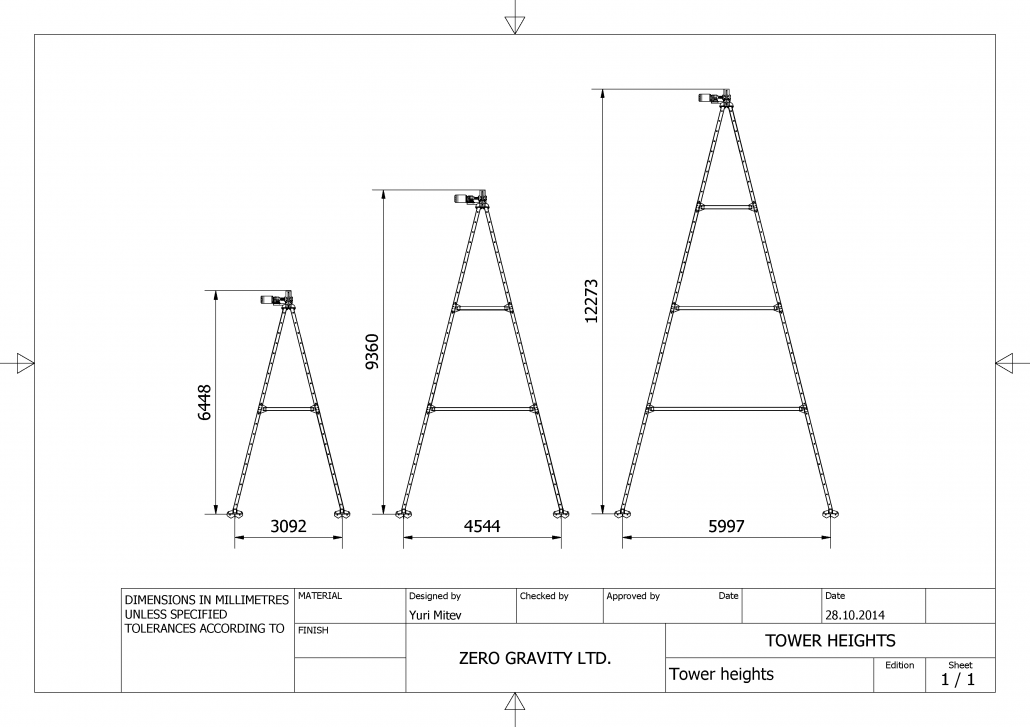

  • Tower height: 6,4 / 9,3 metres adjustable (custom height on request)
  • Distance between pylons: 100-240 meters
  • Operating speed: 0-40 km/h
  • Motor: 9 kW  Siemens
  • Power supply: 3 phase / 27A/400V/50Hz (2 phase as an option)
  • Manual or Automatic operation modes. Auto mode can be limited by Laps, Time or both .
  • Adjustable distance to End points, Turn points and Home position.
  • Drive cable: Ø 8mm, galvanized
  • Tension cables: Ø10mm, galvanized, 2 per tower
  • Wakeboard cable systems
  • Wakeboard cable systems
  • Wakeboard cable systems
  • Wakeboard cable systems
  • Wakeboard cable systems
12345
Zero Gravity Wakeboard Cable Systems
  • Zero Gravity Wakeboard Cable Systems
  • Zero Gravity Wakeboard Cable Systems
123

Automation & Control:

  • Drive automation and control fully realized with Siemens components.
  • Wireless remote control – optional
  • iPad/ PC interface  for setup and real time control.
  • Adjustability of limit points- Home position, Turn 1, Turn 2, End point in mater of minutes.
  • Definition of two rider profiles Beginner and Pro with there own Ramp Up/Down times, turn delay or max speed.
  • Switch between profiles with a single touch of the screen.
  • Auto mode Setup – ON/Off Limit; Limit type: Laps, Time or Both; (Number of laps, Ride time-minutes)
  • Speed monitoring.
  • Work hours log and maintenance warnings.

Price&Ordering

Wakeboard cable systems

Standard Zero Gravity Wakeboard Cable Systems includes:

  • Two complete A frame towers, 9,3 metres height (adjustable to 6,4 m by removing the mid-section)
  • Drive and Deflection units: pre-assembled
  • Carrier: pre-assembled

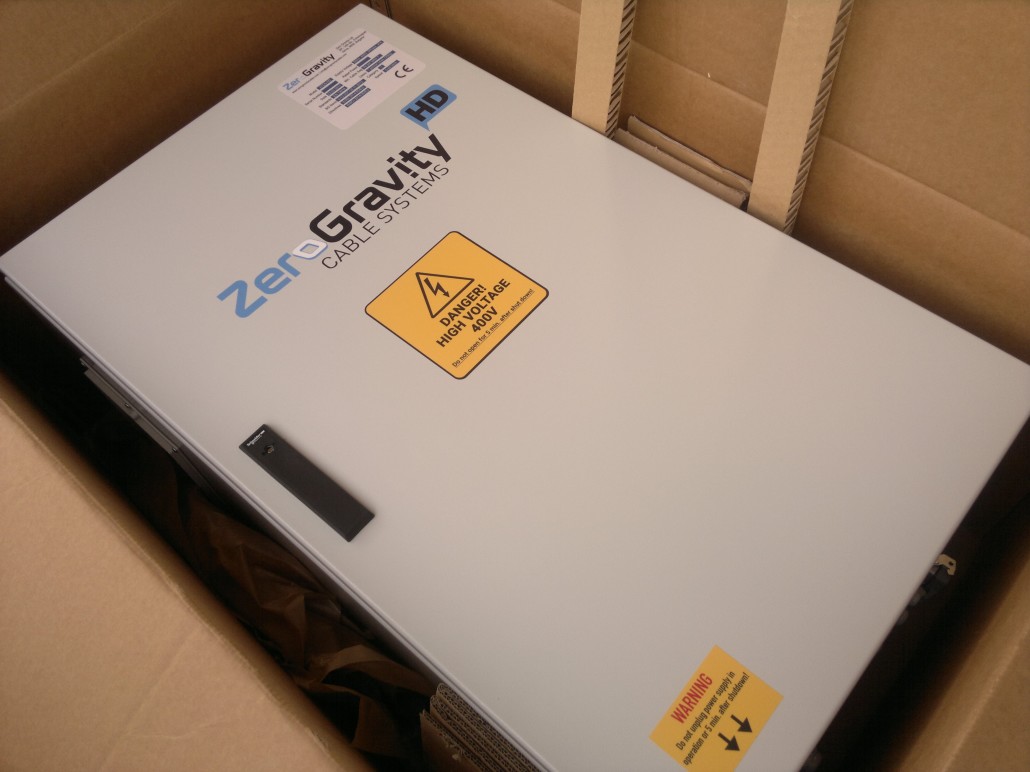

  • Electrical control cabinet

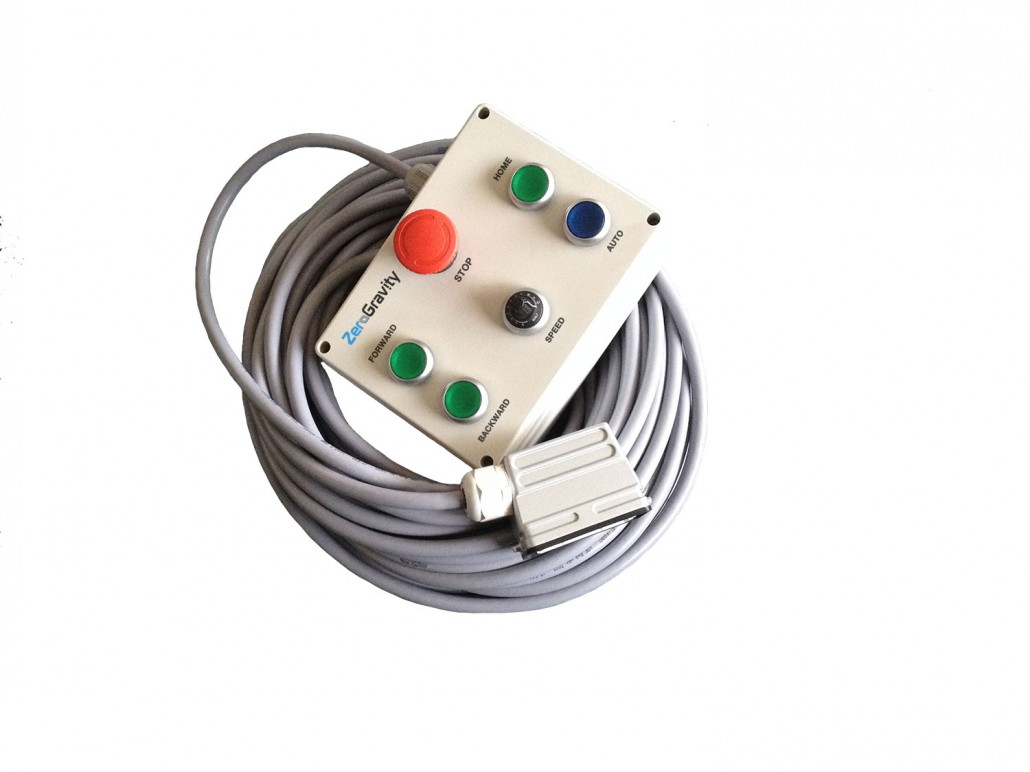

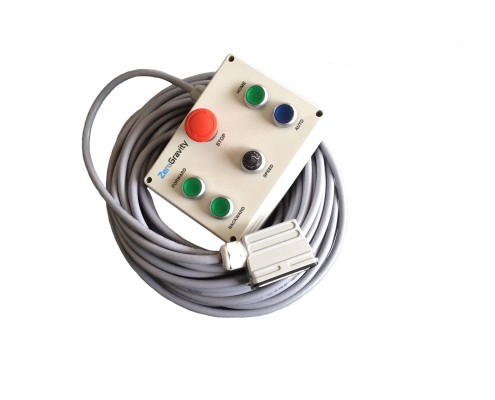

  • Remote control with 25 m. cable
  • Drive wire rope:  500 metres
  • Tension wire ropes:  4 pcs. x 15 m.
  • All necessary fast connect wire rope fixtures, bolts, etc.
  • User manual: Installation / Operation / Maintenance
  • Total System weight: 2000 kg.

System Price:  upon request  (+VAT*)

Wakeboard cable systems

Zero Gravity Wakeboard Cable Systems

Optional:

Installation and maintenance kit: 500 EUR (+VAT*)
Includes:

  • Hand winch ( TIRFOR ): 1.6 t.
  • Chain hoist: 1 t.
  • Drive Wire rope clamps: 2 pcs
  • Lifting belts: 2 pcs

NOT INCLUDED IN THE PRICE: concrete anchor blocks!

CUSTOMER OBLIGATIONS:

  1. To have the necessary site permission for installation of the system;
  2. To provide lifting equipment;
  3. Production of 2 concrete anchor blocks as per supplied drawings;
  4. Ensure electrical source- 3 phase 27A/400V 50Hz on site;
  5. Presence of at least 2 company members for training.

Transport and Installation of our wakeboard cable systems depends on location / site complexity – price upon request, contact us for quote.

All prices are EXW (Ex Works) without VAT.
* VAT is not charget for VAT registered companies in EU or  export outside EU.

RENT OPTIONS – contact us for more information and quote for renting our wakeboard cable systems.
